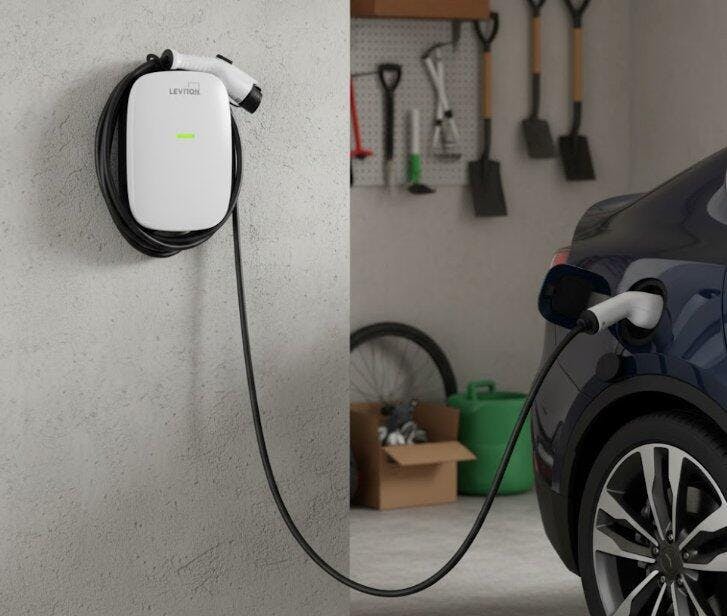

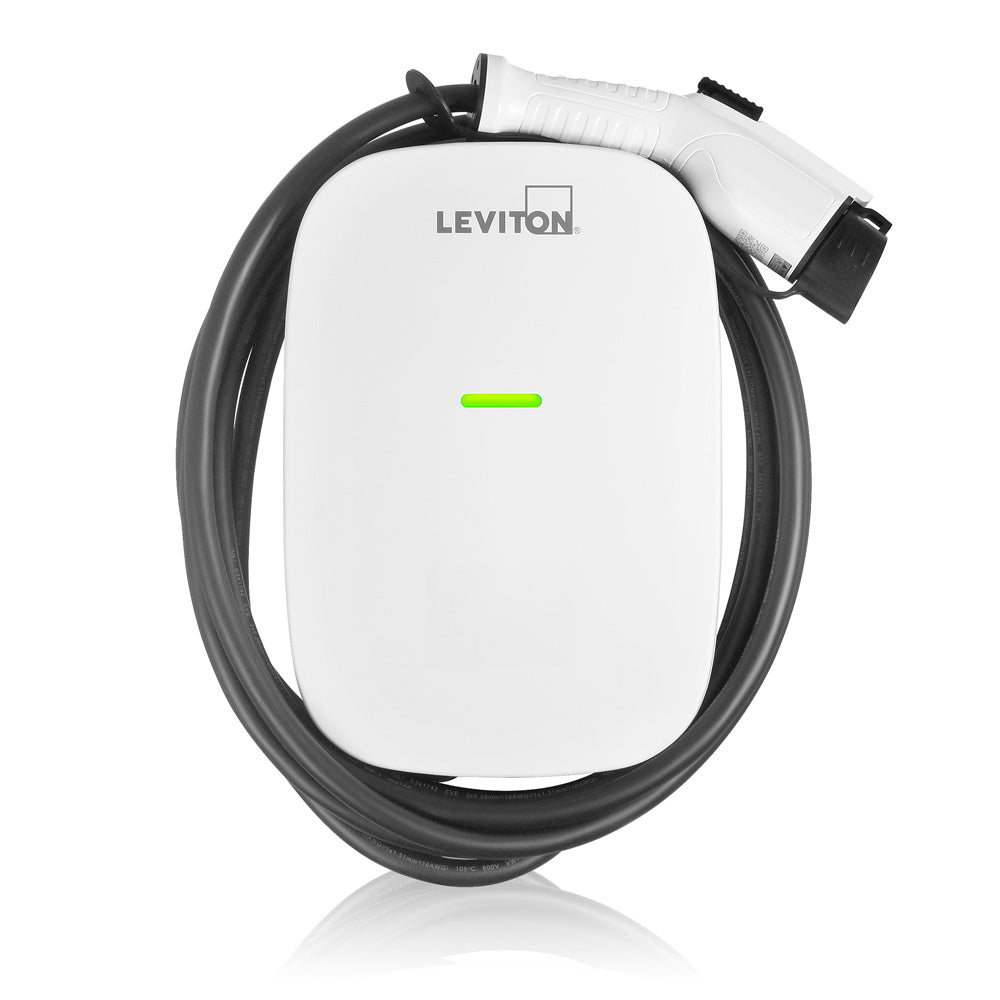

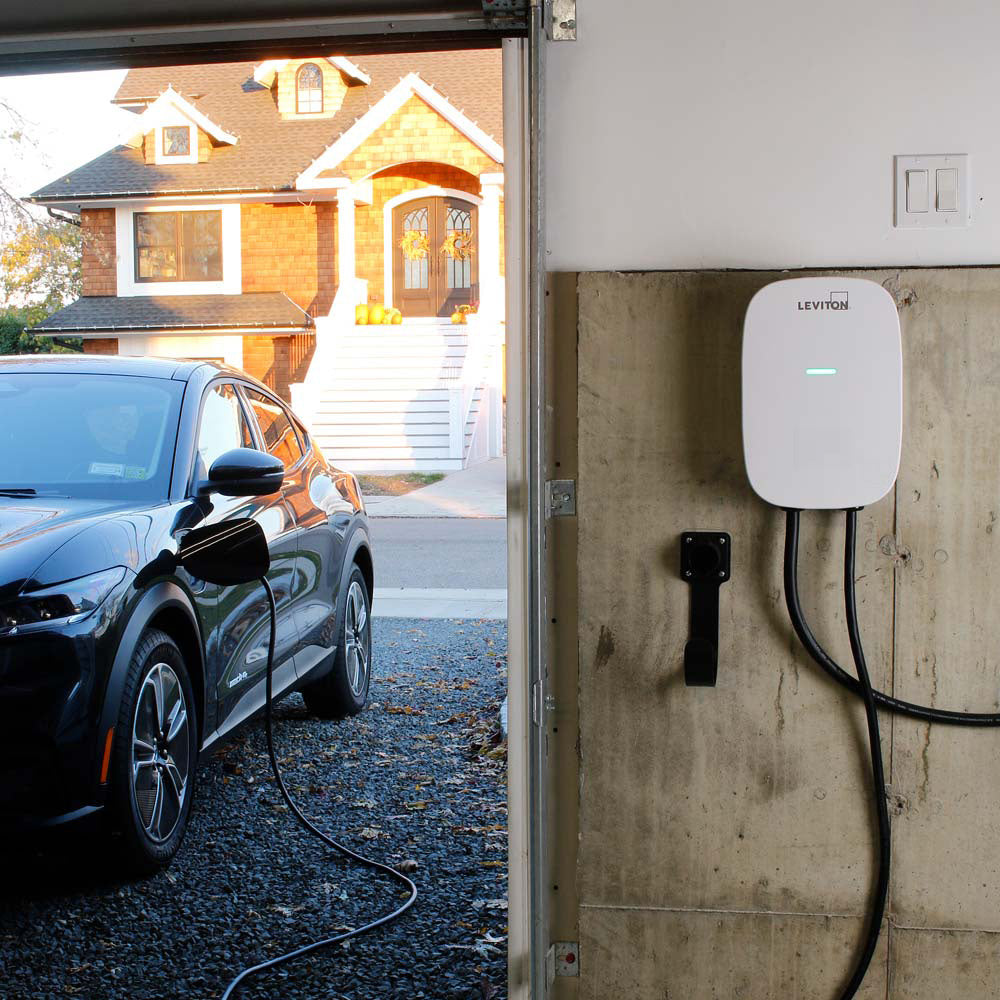

EV480 48 Amp Level 2 Electric Vehicle Charging Station - EV Series

En stock - 1 articles disponibles
Unité de gestion de stock: EV480 Code à barres: EV480
Prix $1,348.20 CAD
Prix -46% $2,500.00 CAD Prix de solde $1,348.20 CAD
Local Presence: Visit or call our retail location for personalized advice.
Hassle-Free Returns: Enjoy a 60-day return window.
Top-Rated Service: Proudly holding a great Google rating!
Transparent Shipping: Average shipping cost is only $14.59.

Questions? Ask an Expert or Visit the Store

Méthodes de paiement
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Union Pay
  • Visa
48 Amp Level 2 Electric Vehicle Charging Station - EV Series
EV Series Standard Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 18' Cord, Replacement for EVR40-B2C, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY

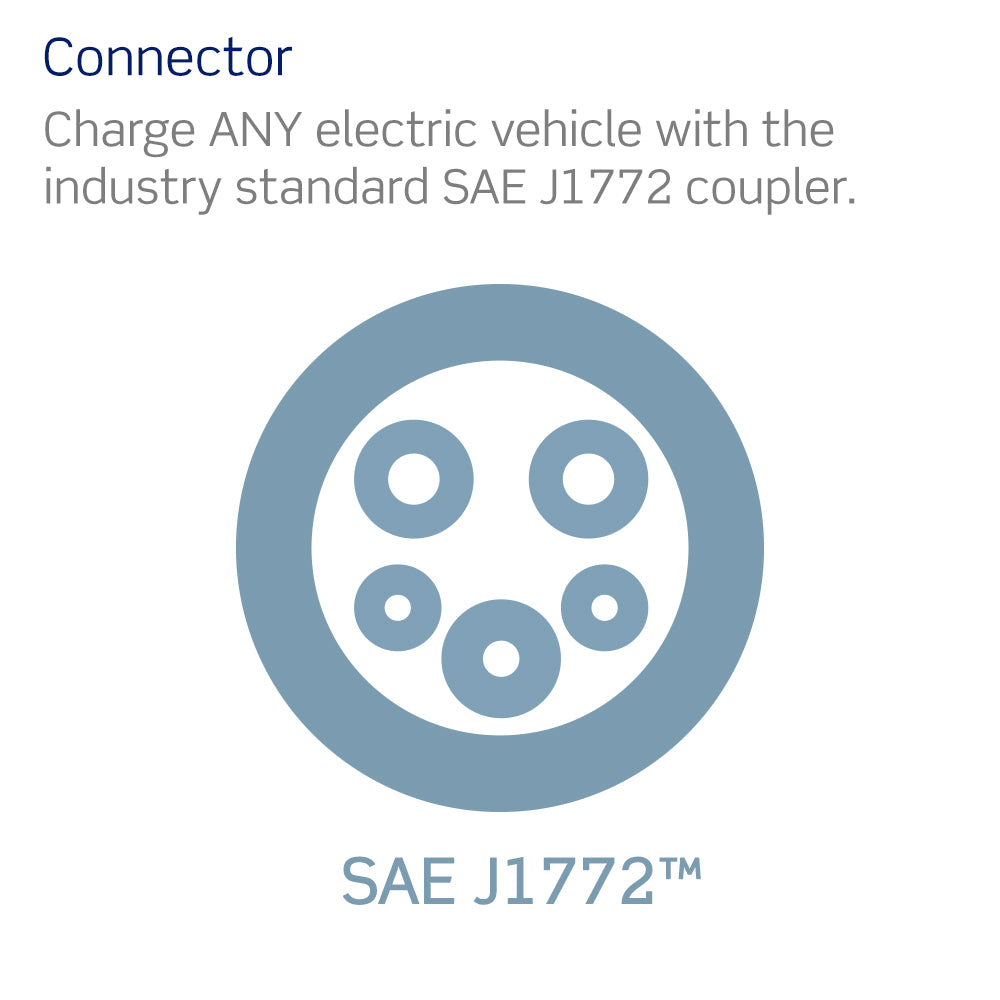

  • Fast and secure charging of any SAE J1772™ compatible electric vehicle
  • Optional access control: station comes with RFID disabled - simply tap RFID card to activate
  • Cable design prevents cord from freezing and cracking in extreme weather
  • For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R

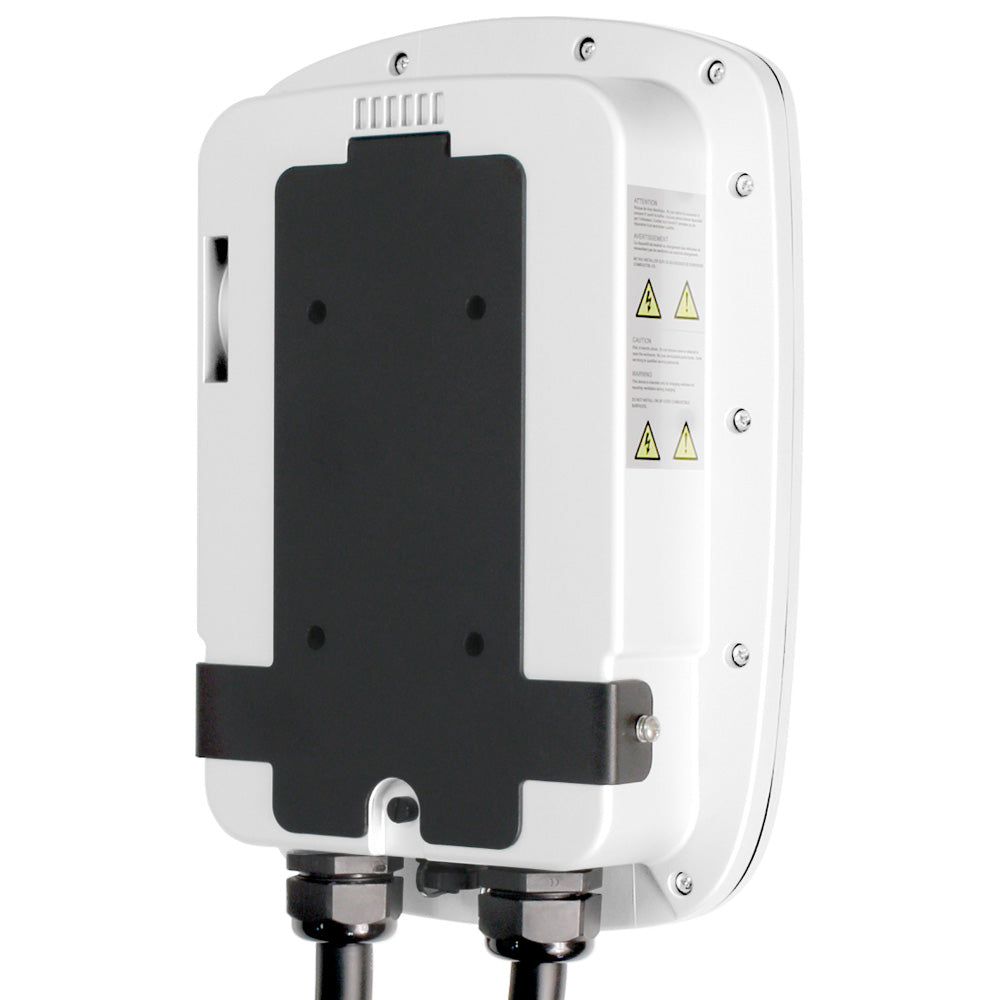

  • Easy installation with pre-attached input cable and mounting hardware included
  • Energy Star Certified


Click here to learn more about our full line of Evr-Green Electric Vehicle Chargers.

For a complete and trusted EV charging infrastructure, include power, protection, safety & energy management from the brand you trust

UPC Code:
078477997284
Country Of Origin:
China

Electrical Specifications

Amperage48 A
Breaker60 A
Charge Connector Cord#7 AWG SAE J1772
Number of Phase / WireL1, L2 and Ground, Bottom Feed
Operating Temperature-30°C to 50°C
Output Power11.6kW
Short Circuit Current Rating20 mA CCID per UL 2231
Voltage208/240 VAC

Environmental Specifications

AltitudeUp to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature-30°C to +50°C
CoolingNatural Cooling
Operating Humidity< 95% Relative Humidity, Non-Condensing

Material Specifications

Enclosure MaterialPlastic (PC+PBT)
Enclosure RatingNEMA Type 3R

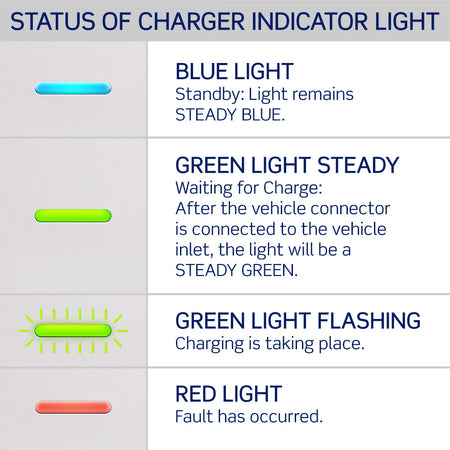

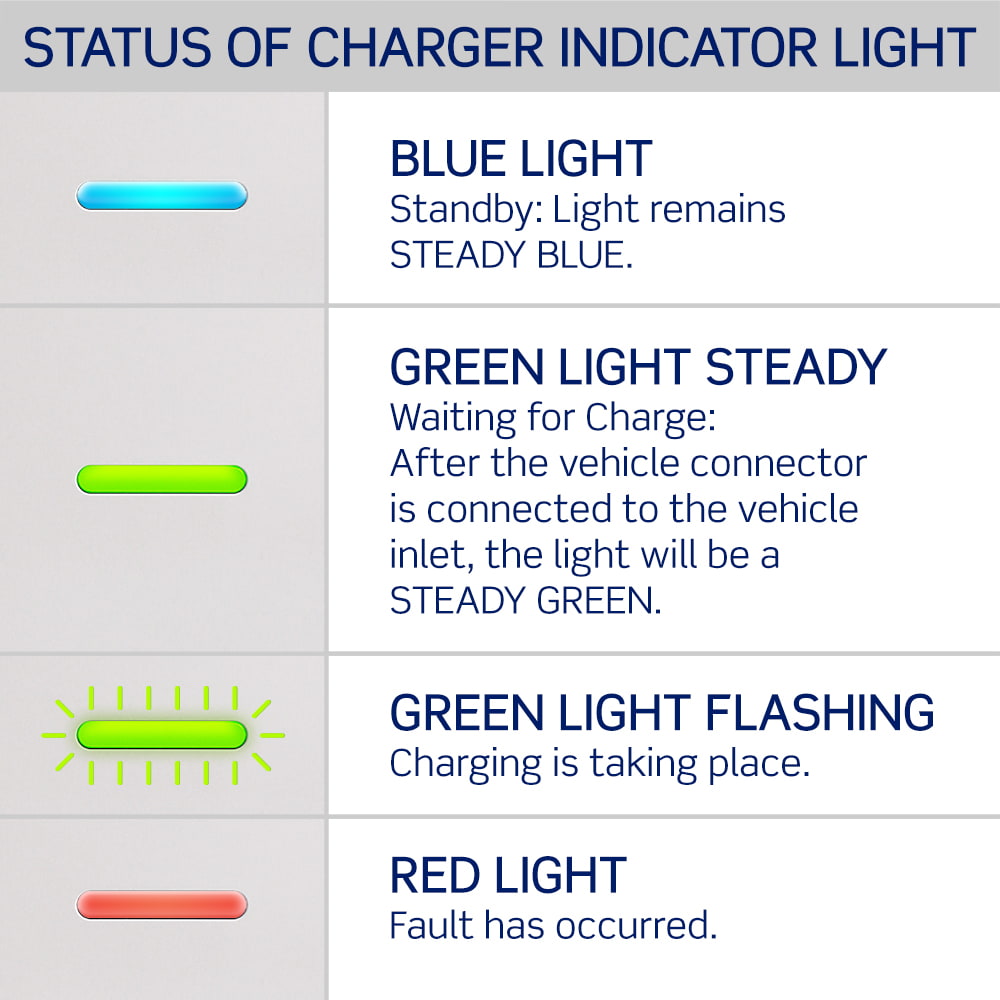

Status IndicatorPower Present, Charging, Fault

Mechanical Specifications

Cable Length18 ft. (5.5 m)

Product Features

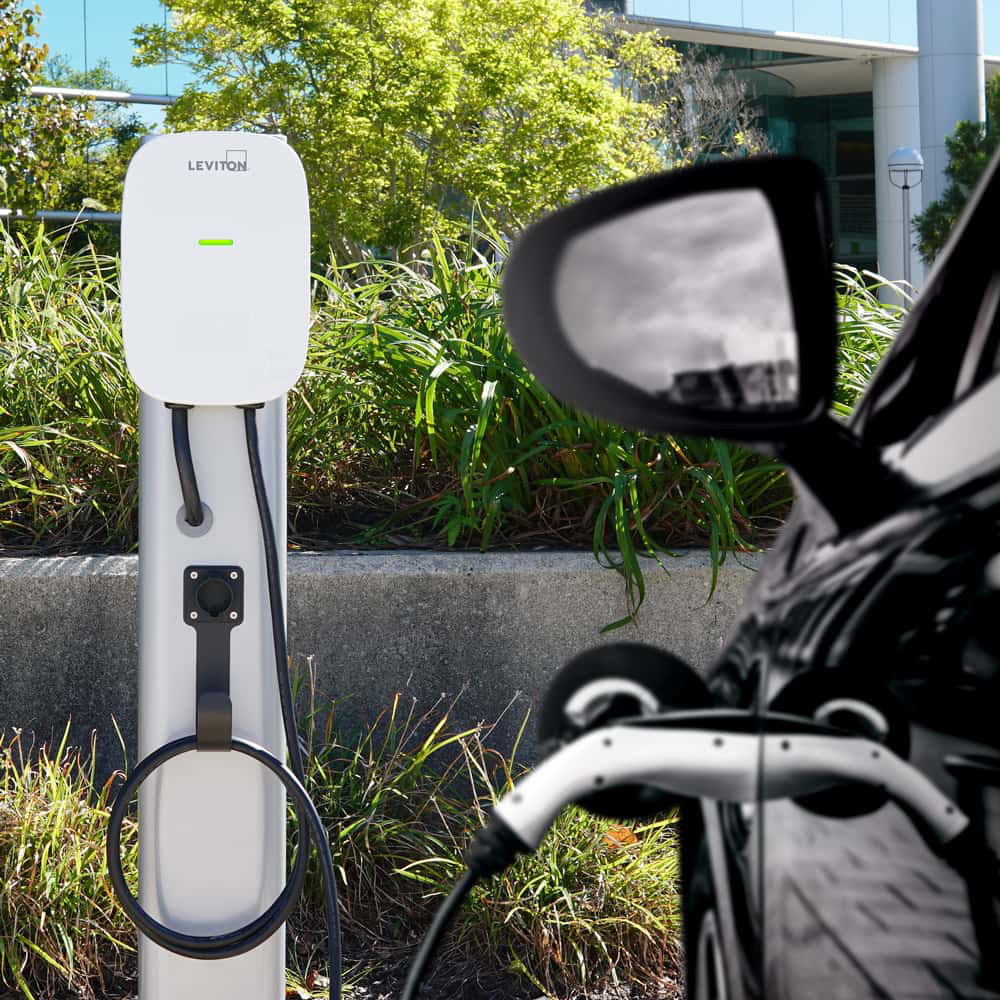

ApplicationHome|Commercial
Cover Locking MechanismPhillips Head Screws, No Padlock Option
Device TypeCharger

Standards and Certifications

Standards and CertificationsUL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant| cETLus

Warranty

Warranty2-Year Limited
