Leviton
Unité de gestion de stock: EV320 Barcode: EV320
Leviton

EV320 32 Amp Level 2 Electric Vehicle Charging Station - EV Series

En stock - 1 articles disponibles
Unité de gestion de stock: EV320 Code à barres: EV320
(0)
$1,242.00 CAD
-50% $2,500.00 CAD $1,242.00 CAD
Local Presence: Visit or call our retail location for personalized advice.
Hassle-Free Returns: Enjoy a 60-day return window.
Top-Rated Service: Proudly holding a great Google rating!
Transparent Shipping: Average shipping cost is only $14.59.

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Union Pay
  • Visa
32 Amp Level 2 Electric Vehicle Charging Station - EV Series
EV Series Standard Level 2 Electric Vehicle Charging Station, 32 A, 208/240 VAC, 7.6kW Output, J1772 Charge Connector, 18' Cord, Replacement for EVR30-B1C and EVR30-R2C, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY
  • Fast and secure charging of any SAE J1772™ compatible electric vehicle
  • Optional access control; station comes with RFID disabled - simply tap RFID card to activate
  • Cable design prevents cord from freezing and cracking in extreme weather
  • For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R

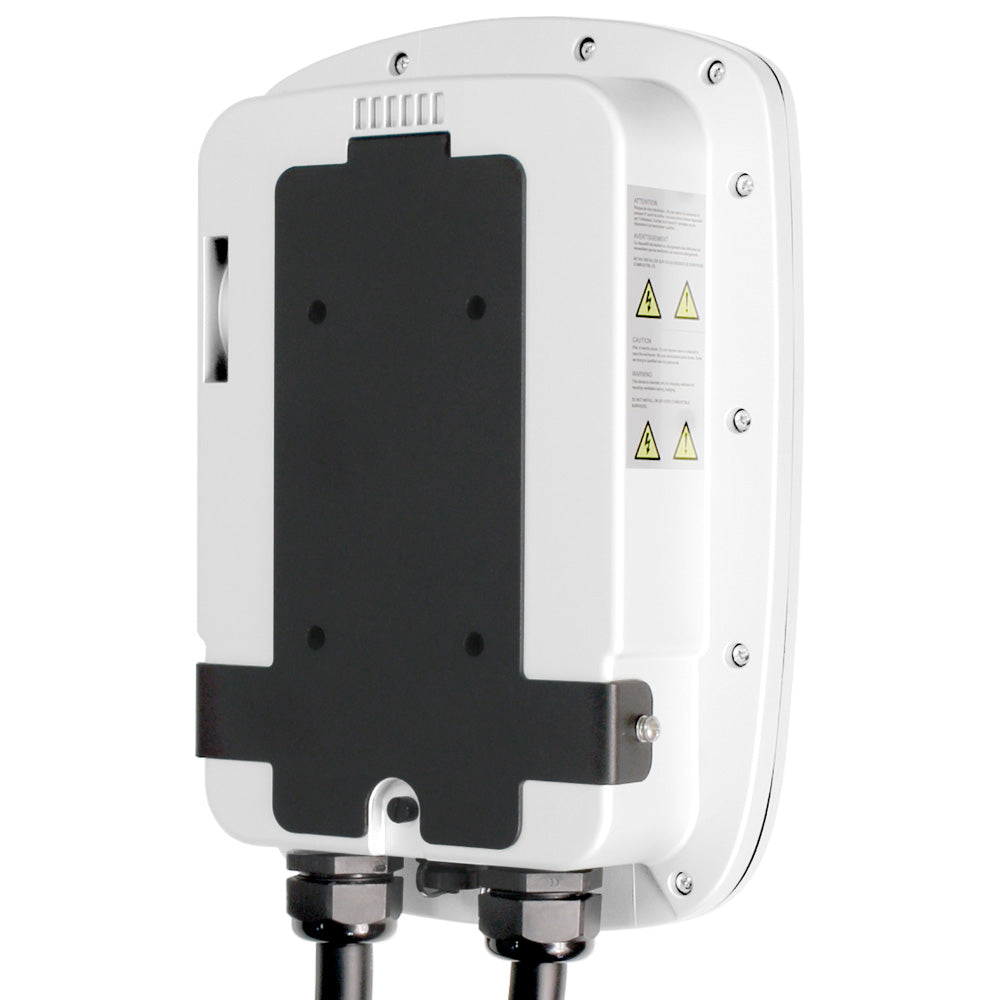

  • Easy installation with pre-attached input cable and mounting hardware included
  • Energy Star Certified

Electrical Specifications

Amperage32 A
Breaker40 A
Charge Connector Cord#10 AWG SAE J1772
Number of Phase / WireL1, L2 and Ground, Bottom Feed
Operating Temperature-30°C to 50°C
Output Power7.6kW
Short Circuit Current Rating20 mA CCID per UL 2231
Voltage208/240 VAC

Environmental Specifications

AltitudeUp to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature-30°C to +50°C
CoolingNatural Cooling
Operating Humidity< 95% Relative Humidity, Non-Condensing

Material Specifications

Enclosure MaterialPlastic (PC+PBT)
Enclosure RatingNEMA Type 3R

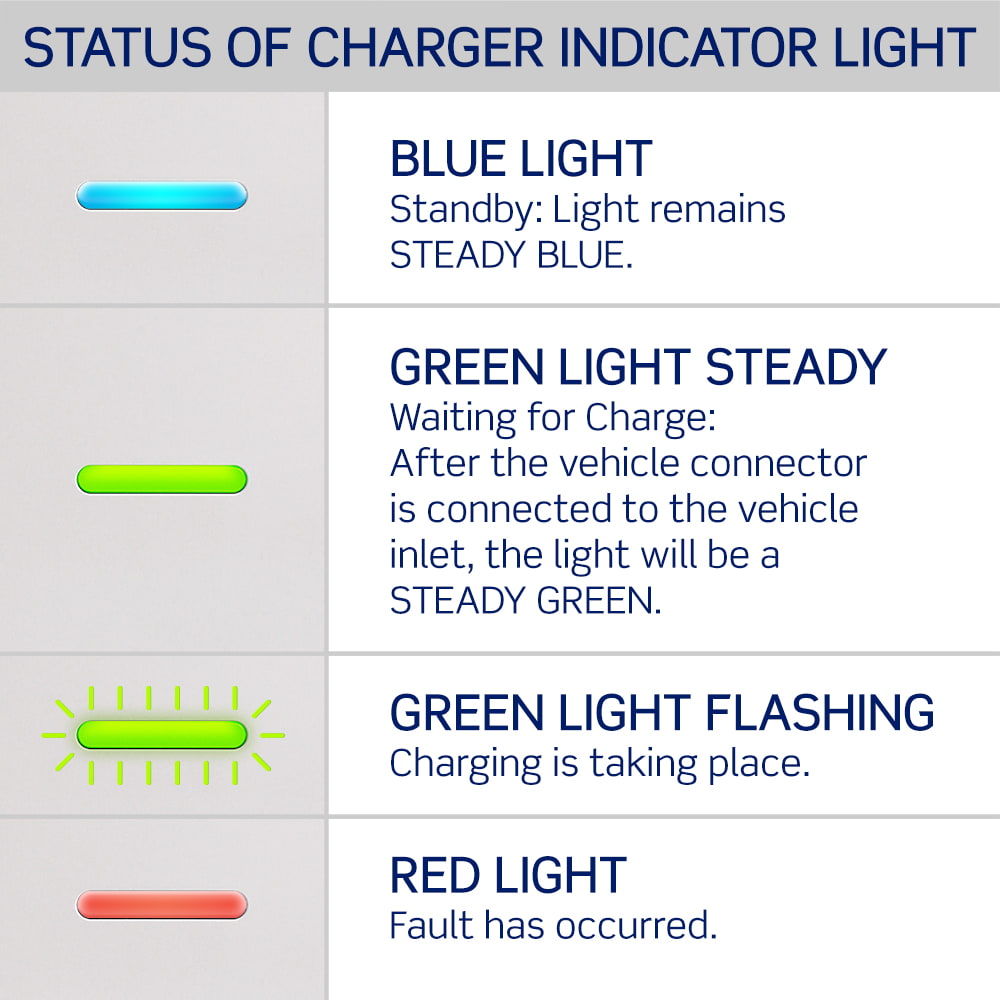

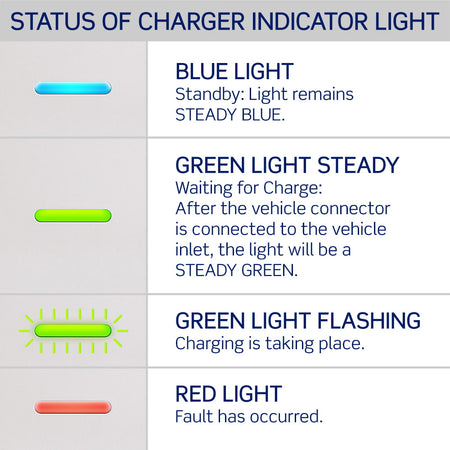

Status IndicatorPower Present, Charging, Fault

Mechanical Specifications

Cable Length18 ft. (5.5 m)

Product Features

ApplicationHome|Commercial
Cover Locking MechanismPhillips Head Screws, No Padlock Option
Device TypeCharger

Standards and Certifications

Standards and CertificationsUL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant| cETLus

Warranty

Warranty2-Year Limited
