LEV Series IEC Pin & Sleeve Plug

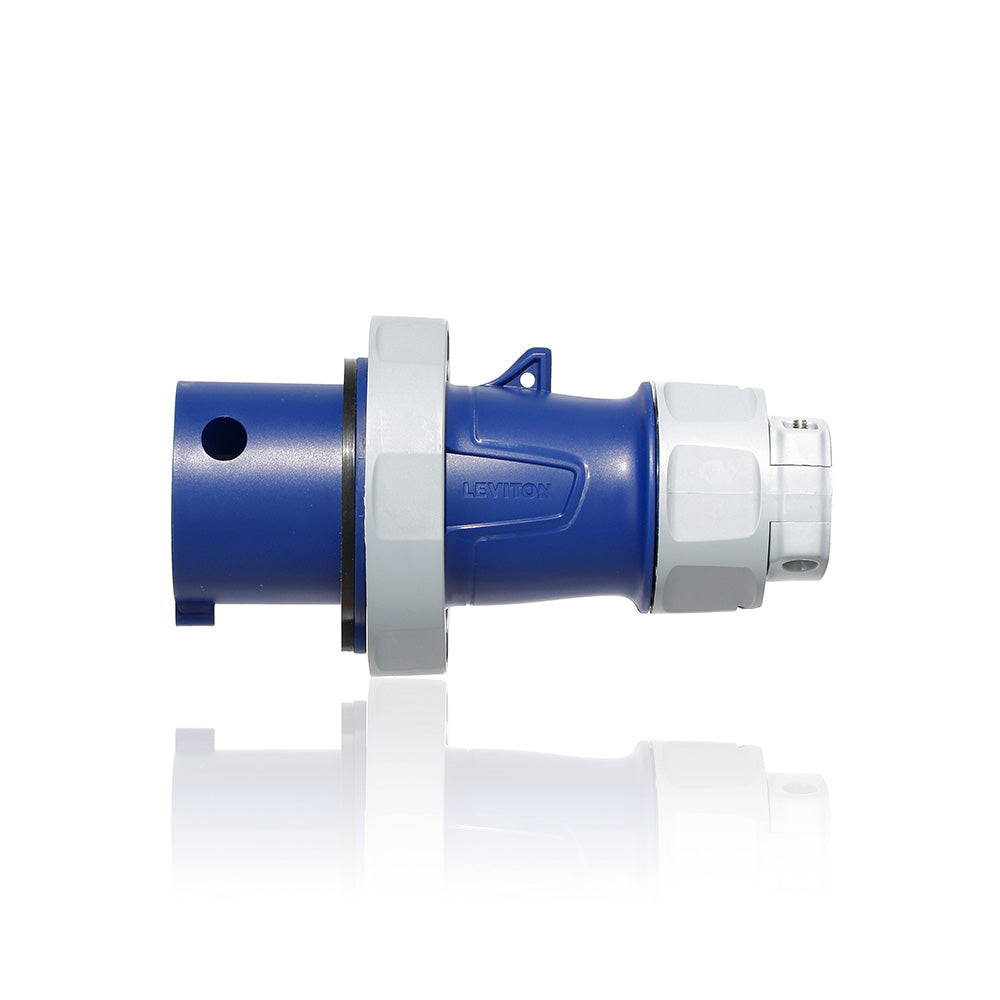

30/32 Amp, 250 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Plug, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue
LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
- Threaded housing design removes several screws making installation quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
- NSF certified sanitary design trusted for use in food & beverage facilities
Electrical Specifications
Amperage30/32 A
Current InterruptingCertified for current interrupting at full-rated current and voltage
Dielectric Voltage3000V for 1 min.
Endurance1000 cycles rated V and I load, 1000 cycles no-load (30A)
Horsepower Rating3 HP
Max. Voltage600V
Overload UL20 Test50 cycles
Phase3-Phase
Pole3
SCCR200kA
Temperature RiseMax 30°C rise at full rated current (after overload)
Voltage250 VAC
Wire4
