330R6WLEV

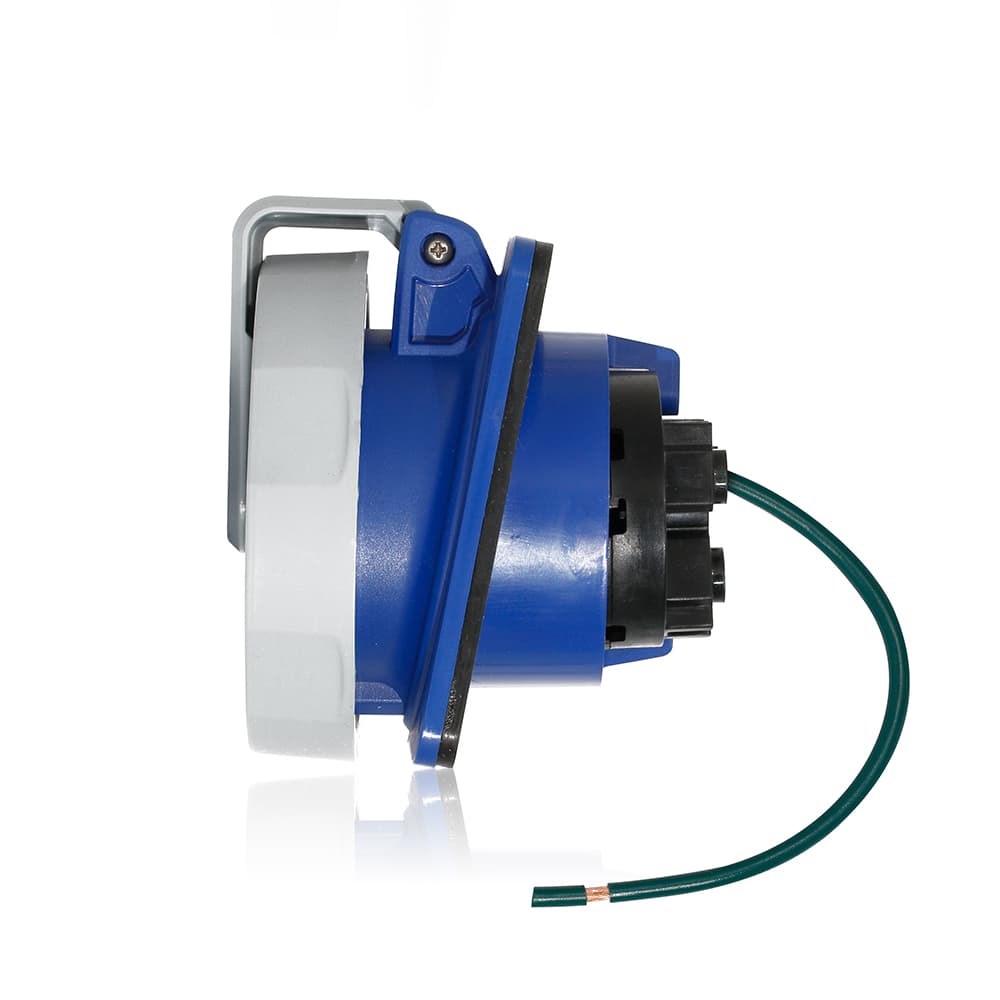

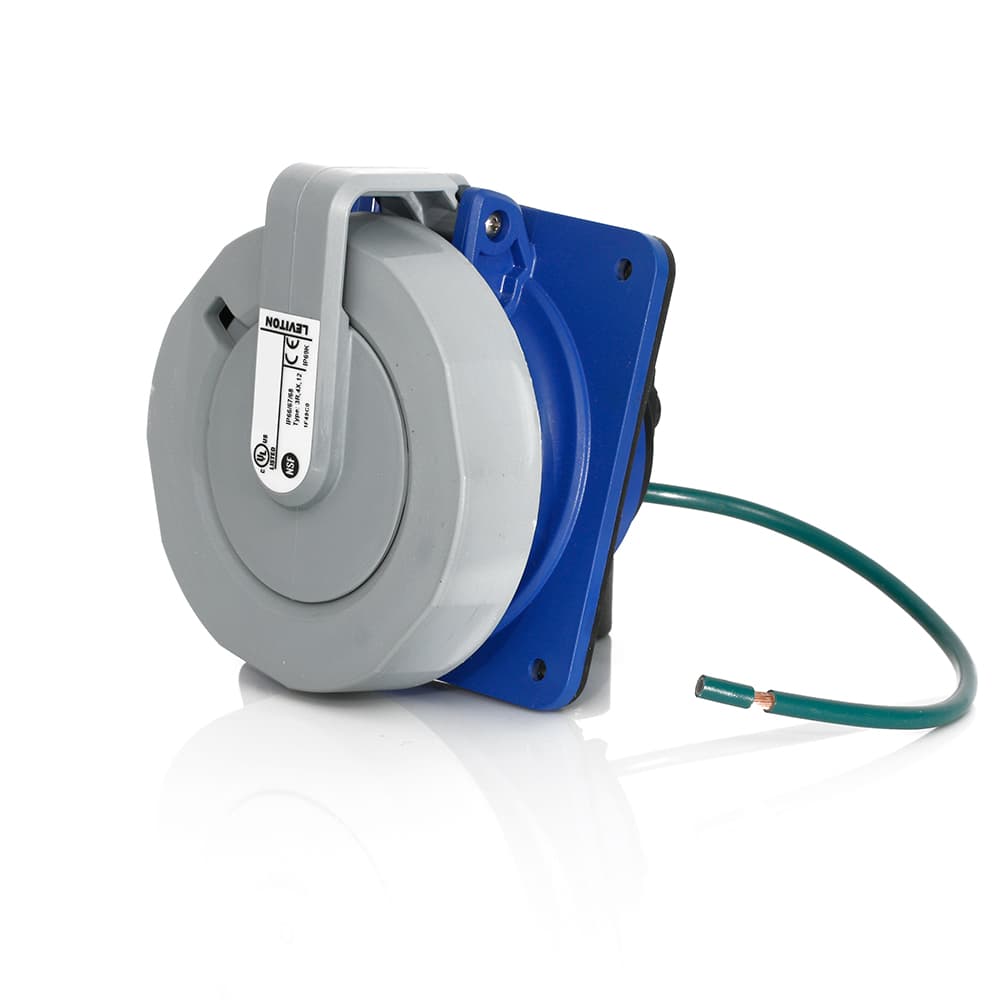

LEV Series IEC Pin & Sleeve Receptacle
30/32 Amp, 250 Volt, 2P, 3W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Receptacle, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue

LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

  • Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
  • Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion

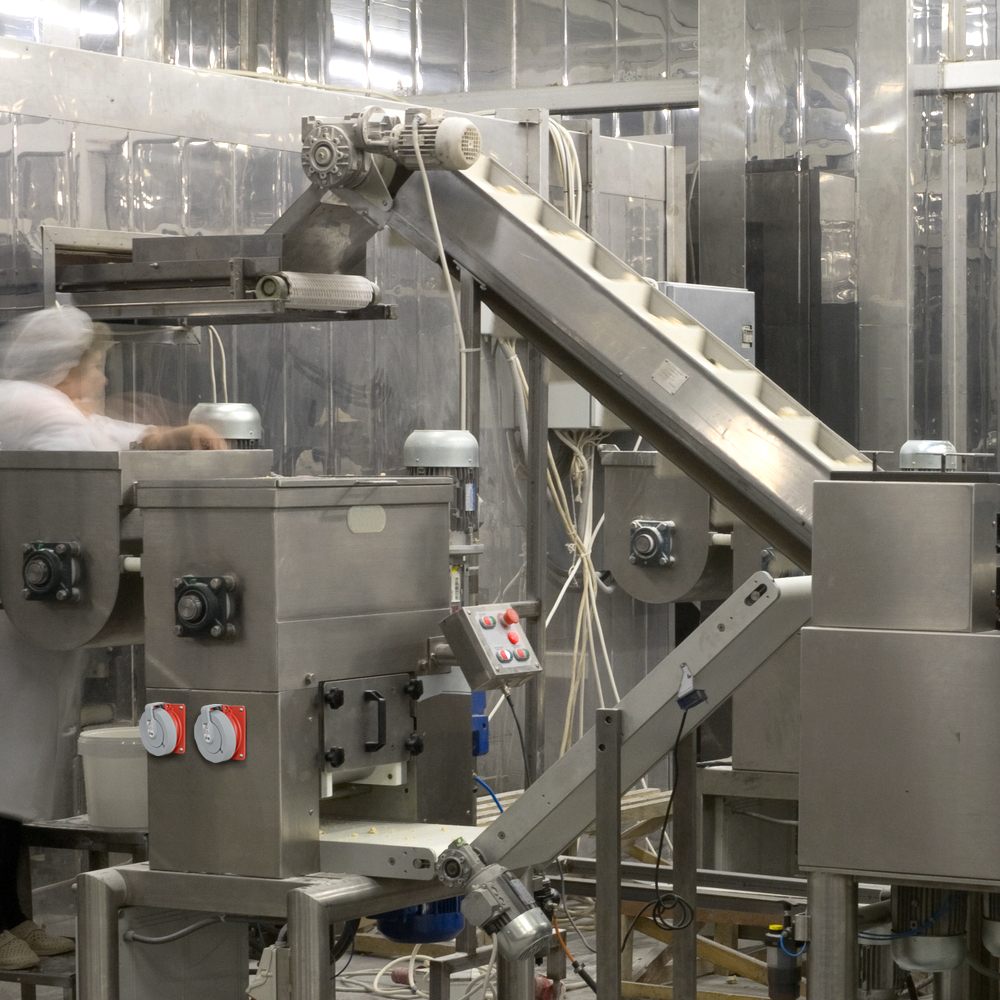

  • NSF certified sanitary design trusted for use in food & beverage facilities

Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.

Electrical Specifications

Amperage30/32 A
Current InterruptingCertified for current interrupting at full-rated current and voltage
Dielectric Voltage3000V for 1 min.
Endurance1000 cycles rated V and I load, 1000 cycles no-load (30A)
Max. Voltage600V
Overload UL20 Test50 cycles
Pole2
SCCR200kA
Temperature RiseMax 30°C rise at full rated current (after overload)
Voltage250 VAC
Wire3

Environmental Specifications

Corrosion ResistanceSalt fog tested
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP RatingIP66, IP67, IP68, IP69K
NEMA Enclosure Type3R, 4X, 6P and 12
NSF14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV ResistanceUV stabilized F1 rated housings

Material Specifications

Assembly Screws303 Stainless Steel
Contact CarrierGlass filled Nylon
Grommet/GasketNBR/Buna N
HousingPBT
Terminal Screws303 Stainless Steel

Mechanical Specifications

Cable Clamp Screw Torque10 in-lb
Conductor Range#12 AWG to #8 AWG
Contact Carrier Assembly Screw Torque8 in-lb
Crush Test250 lbs for 1 min after -25°C for 6 hrs
Hardware Head TypeHex style socket screws for terminals, combination screws for all others
ImpactDrop from 30" 8 times after conditioning to -25°C, for 6 hours; Drop from 72" after conditioning to -35°C, for 6 hours
Screw Terminal Torque20 in-lb

Product Features

SeriesLEV Series

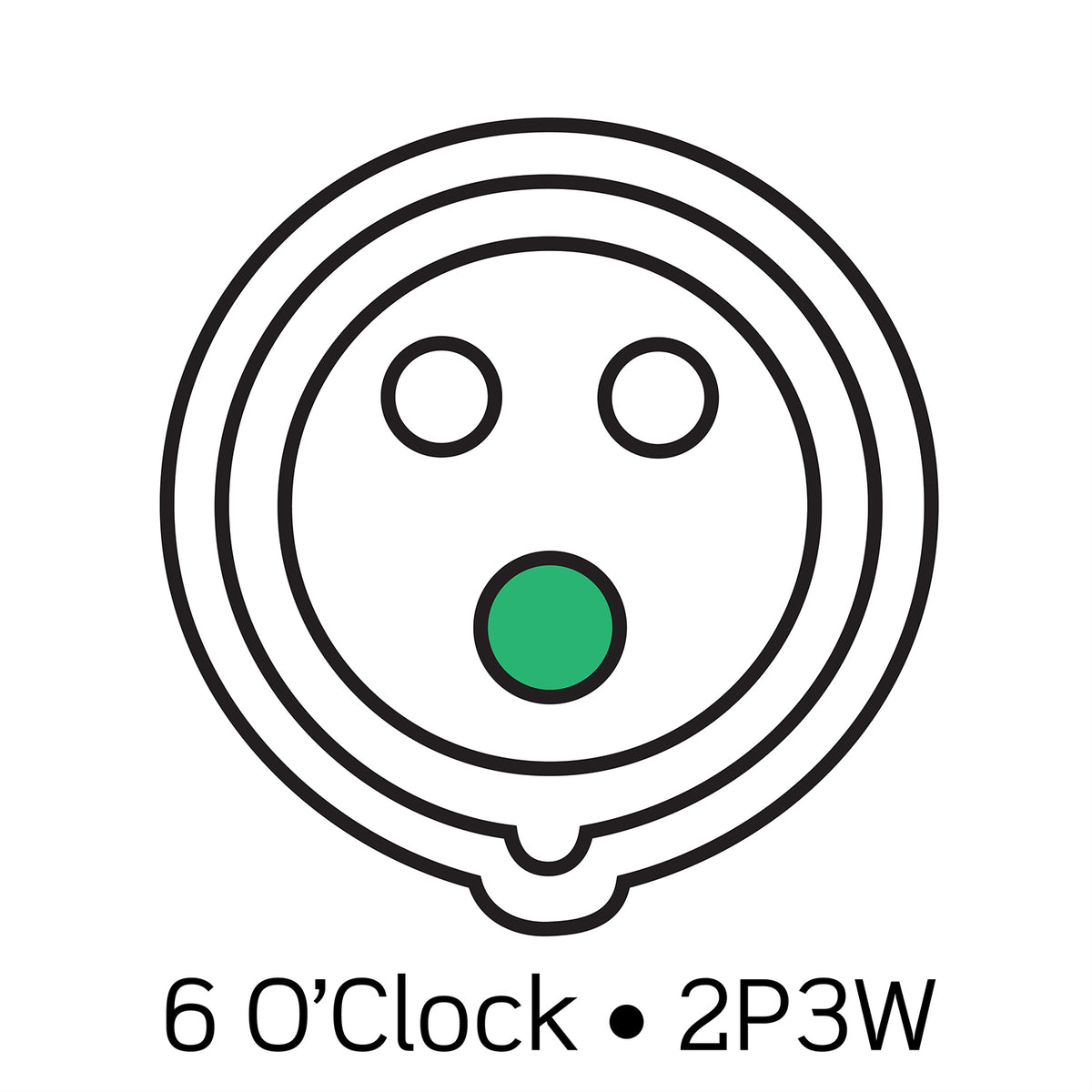

Clock Position6 o'clock
ColorBlue
ConfigurationNorth American
Device TypeReceptacle
Lockout/Tagout ProvisionLockout hole on housing
Product MarkingsBrand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label. IEC 60309-1, -2 Dual Ratings on separate label.

Standards and Certifications

CECE certification
CSACSA C22.2 No 182.1-13 (Harmonized with UL 1682)
IEC Rating60309-1, 60309-2
NOMNOM –ANCE standards
RoHSRoHS compliant components
ULUL 1686 C2, UL 1682, UL Classified to IEC 60309-1, 60309-2

Warranty

Warranty5-Year Limited

LEV Series Savings Calculator

UPC Code:
078477921869
Country Of Origin:
Mexico
