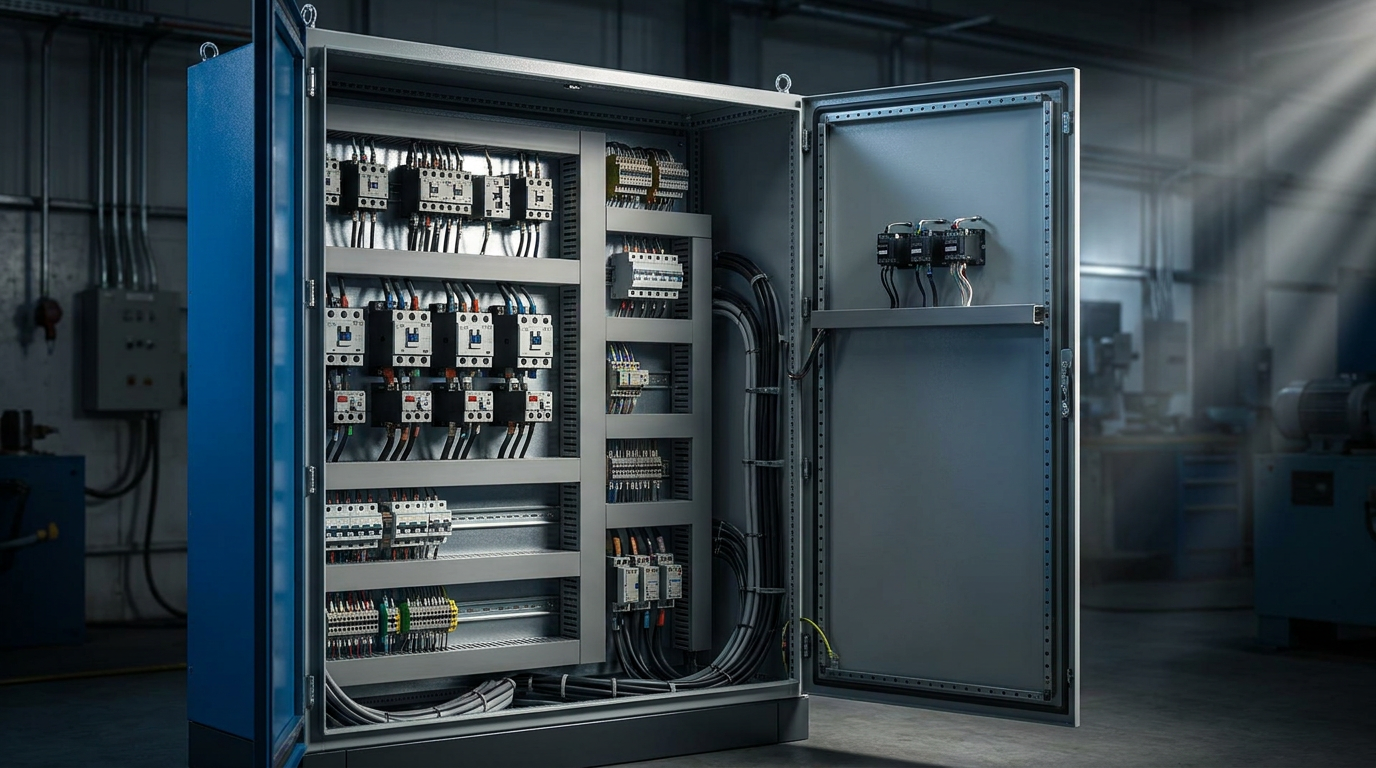

Motor Control 101: Contactors, Starters & VFDs Explained for Electricians

Motor Control 101: Contactors, Starters & VFDs Explained for Electricians

The Three Ways to Start a Motor

Every industrial motor needs a starter — a device that safely energizes and de-energizes the motor, and protects it from overload. There are three main starting methods, each suited to different applications and budgets.

1. Direct-On-Line (DOL) Starting

The simplest method: a contactor closes and applies full voltage directly to the motor terminals. The motor sees full starting torque and starting current (typically 6–8x full-load amps). DOL starters are low cost, simple to maintain, and reliable. Best for: small motors, motors that start infrequently, applications where high starting torque is needed (conveyors, crushers).

Components of a DOL Starter

  • Contactor: The main switching device. Rated in AC-3 amps for squirrel-cage motor loads. Common brands: Lovato BF series, ABB AF series, Schneider LC1-D series.
  • Overload relay: Thermal or electronic device that trips the circuit if the motor draws excess current. Set to 100–115% of motor FLA.
  • Control transformer: Steps panel voltage (600V or 480V) down to 120V for the control circuit.
  • Push buttons and pilot lights: Start/stop control at the MCC door.

2. Star-Delta (Y-Delta) Starting

Starts the motor in star configuration (reduced voltage, lower current) then transitions to delta (full voltage) after a time delay. Reduces starting current to roughly 33% of DOL. Best for: medium-large motors (30HP+) where utility demand charges or transformer capacity is a concern. Requires 6-wire connection to motor terminals.

3. Variable Frequency Drive (VFD) Starting

A VFD converts AC power to DC, then synthesizes new AC at variable frequency and voltage. This allows the motor to accelerate smoothly from 0 Hz to full speed, limiting starting current to 100–150% of FLA. Benefits: maximum energy savings (speed control = power cubed reduction on centrifugal loads), soft starts, process control, and motor protection. Standard for pumps, fans, and HVAC equipment.

Selecting a VFD

Key parameters: kW or HP rating (must match motor), voltage (120V/240V single-phase for small; 480V/600V 3-phase for industrial), input voltage tolerance (Canadian 600V systems need a 600V-rated drive), overload capability (110% for HVAC pumps; 150% for constant-torque conveyors), enclosure (NEMA 1 for clean indoors; NEMA 12 for dusty environments; NEMA 4X for wash-down).

Motor Protection: What You Need

  • Short circuit protection: Fuses or motor branch circuit breakers (HMCP). Sized per CEC Table 28 — typically 250% to 300% of FLA for time-delay fuses.
  • Overload protection: The overload relay in the starter. Must trip within code time at 125% of FLA.
  • Phase loss protection: Electronic overload relays detect phase loss. Essential for 3-phase motors — single-phasing destroys motors within minutes.
  • Thermistor protection: Embeds temperature sensors in the motor windings, wired to a thermistor relay in the MCC. Best practice for larger motors.

Motor Control Products at Maple Electric Supply

We stock contactors, DOL starters, overload relays, VFDs, control transformers, push buttons, and pilot lights from Lovato, ABB, Schneider Electric, and other leading brands. Same-day pickup in Toronto or next-day delivery across Ontario. Browse our motor control collection or contact our industrial team for panel build support.
