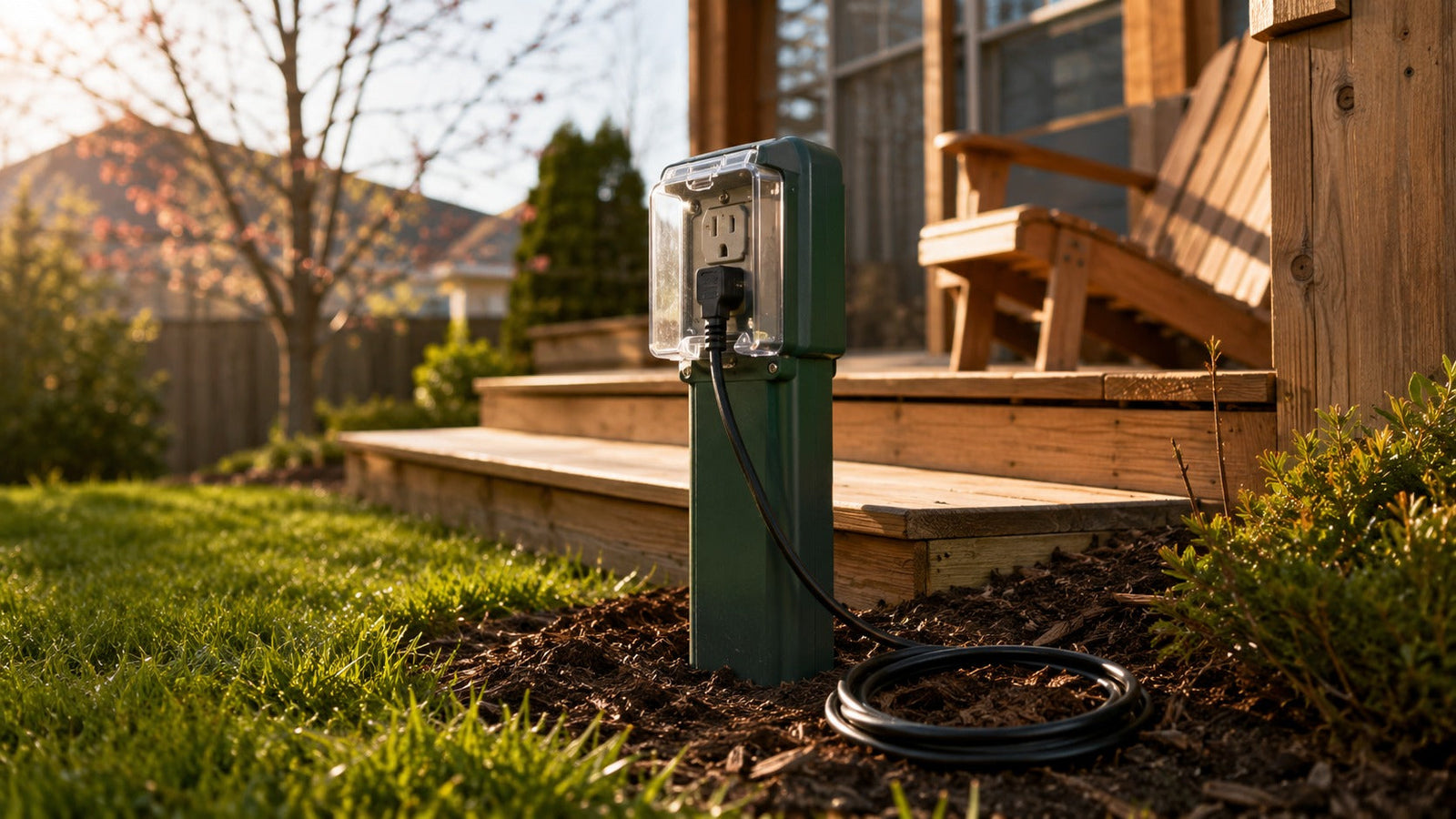

Arlington Gard-N-Post Install Guide: Outdoor GFCI Stations That Actually Survive a Canadian Winter

Spring reno season is here, and the same callbacks land in our inbox every May: cracked outdoor receptacles, rusted boxes pulled off post-and-deck mounts, GFCIs that won't reset after one cycle of freeze-thaw. Most of it traces back to one decision the original installer made — they used the wrong support.

The Arlington Gard-N-Post GPD19GGC (SKU: GPD19GGC) and its low-profile sibling, the Arlington GPD19BGC (SKU: GPD19BGC), exist because slapping a weatherproof cover on a stake-mounted box is not an outdoor receptacle install. It's a callback waiting to happen.

This is the install guide we hand to apprentices. Read it, spec it, charge for it.

What the Gard-N-Post Actually Is

The Gard-N-Post is a one-piece, UV-resistant, non-metallic enclosure system that bundles a 19.5" support post, an integrated weatherproof receptacle housing, and a base flange for direct burial or concrete stub-up. You wire it once, backfill, and walk away with a finished outdoor power station that meets CEC requirements for receptacles in damp and wet locations.

Two colours, two use cases:

• GPD19GGC (Green) — disappears into lawn, mulch beds, and garden borders. Default for landscape lighting controllers, pool pumps, and seasonal yard receptacles.
• GPD19BGC (Black) — neutral on decks, patios, and modern home exteriors. Pairs cleanly with EV-adjacent outlets, BBQ stations, and hot tub disconnect supports.

Both ship with an in-use weatherproof cover suitable for CEC Section 26-704 outdoor receptacle requirements, and both accept a standard 15A or 20A GFCI receptacle (sold separately — keep one on the van).

Why "Stake a Box in the Ground" Doesn't Work in Ontario

You've seen it. Plastic device box zip-tied to rebar, weatherproof cover bolted on, conduit running from a basement panel to a garden bed. It looks fine in July. By March, the box has heaved 3 inches, the conduit has cracked at the LB, and the GFCI is full of meltwater.

The Gard-N-Post solves three problems at once:

1. Frost heave resistance — the 19.5" buried profile + flared base keeps the receptacle plumb through freeze-thaw cycles. No more tilted outlets.
2. Moisture management — the sealed enclosure plus integrated drainage path keeps water out of the device cavity. GFCIs hate standing water more than they hate voltage spikes.
3. Mechanical protection — a lawnmower clipping the post bends nothing. A snow shovel bumping it does nothing. That's CEC-friendly mechanical protection without running rigid conduit above grade.

Pro Tip: Spec the Gard-N-Post on every quote for landscape lighting, pool/hot tub circuits, garden sheds, and EV-charger-adjacent receptacles. The $80–$120 CAD line item is invisible next to the $250+ callback for a heaved, water-logged outdoor box.

Materials List for a Clean Install

• Arlington GPD19GGC or GPD19BGC — the post itself
• Arlington CPS30 3" Concrete Pipe Sleeve — for stub-ups through patio slabs
• 15A or 20A weather-resistant GFCI receptacle (WR/TR-rated)
• NMD90 12/2 or 14/2 cable, or RWU90 for direct burial
• Arlington AS0 Anti-Short Bushing — for MC terminations at the panel
• Arlington 720Z Ground Clamp — for bonding metallic stub-ups
• Klein RT210 GFCI Receptacle Tester — for post-install verification
• Klein D213-9NE Side-Cutting Pliers — for clean wire prep

Step-by-Step Install

1. Plan + confirm CEC compliance

Outdoor receptacles must be GFCI-protected per CEC Section 26-724. Bury depth for RWU90 direct-burial is min 600 mm (24") per CEC Section 12-012. Dedicate the circuit for hot tubs, EV-adjacent loads, or pool equipment.

2. Dig the trench, prep location

Dig to 600 mm. Cable entry faces panel feed. Backfill 50 mm compacted sand under the post for drainage.

3. Pull cable, set post, backfill

Feed RWU90 up through the integrated cable entry. Plumb with a torpedo level. Backfill in 150 mm lifts, compacting each lift. Skipping compaction is why posts heave.

4. Make up the GFCI

Strip and land on the WR/TR-rated GFCI. Line/load terminals — line is incoming feed. Torque to spec. No backstabs on outdoor circuits.

5. Cover + test + label

Seat the gasket, drive cover screws to manufacturer torque. Verify GFCI trip/reset with a Klein RT210. Label the breaker per CEC Section 2-100. Photograph the buried run before backfill.

Pro Tip: Snap a phone photo of the trench before backfill with a tape measure showing depth. Drop it in the customer's job folder — your defence if anyone questions burial depth on inspection or insurance.

Common Mistakes That Cost Callbacks

• Wrong cable. NMD90 alone isn't approved for direct burial. Either RWU90 or sleeve the NMD90 in direct-burial conduit.
• Skipping the WR/TR GFCI. Standard indoor GFCIs aren't rated for in-use covers.
• Backstab terminals. Outdoor thermal cycling loosens backstabbed connections. Wrap terminals around screws.
• No bonding on metallic stub-ups. Bond with the Arlington 720Z.
• Inadequate burial depth. Residential cable burial is 600 mm in Southern Ontario.

The Spring Reno Bundle Upsell

Quote the Gard-N-Post as part of a "Backyard Power Package" — one home run from the panel, one Gard-N-Post at the deck edge, dedicated circuit for landscape lighting or a future hot tub. List as one-day install, charge accordingly, and you've upsold a $150 service call into a $1,200+ project.
